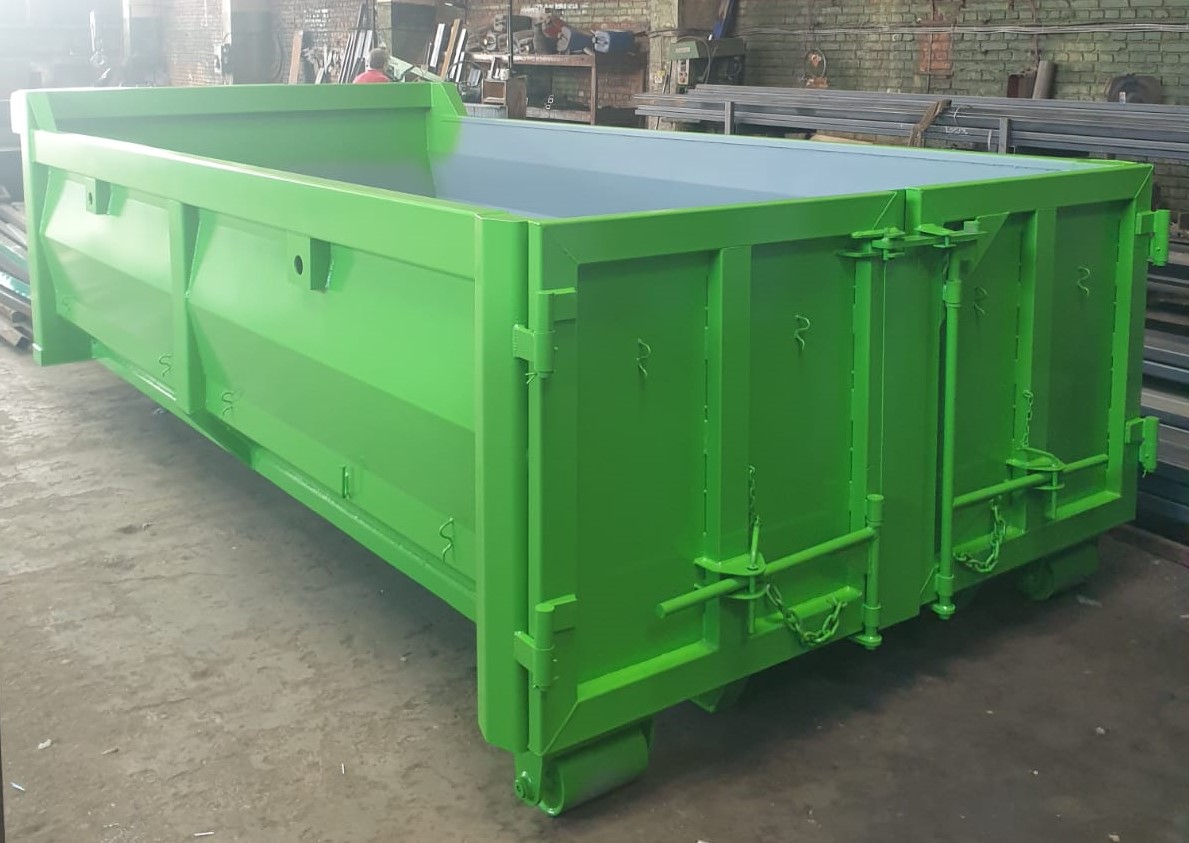

Metal Abroll containers

Abroll (roll-on/off) containers take a wide range of waste: scrap metal, sawdust, household and industrial waste, including hazardous liquids in the sealed versions. They are handled by hook-lift vehicles.

Technical data

Standard	DIN 30722-1
Volume	5–39 m³ in the standard range; since November 2022 we also build a 50 m³ Abroll container
Inside length	4000–7000 mm in 250 mm steps, depending on the hook-lift type
Inside width	2300 mm (standard)
Inside height	2400 mm maximum
Lifting hook	Round steel Ø 50 mm, S355JR
Sheet steel	S235JR: floor 4 or 5 mm, walls 3 or 4 mm
Runners	INP 180 mm profiles

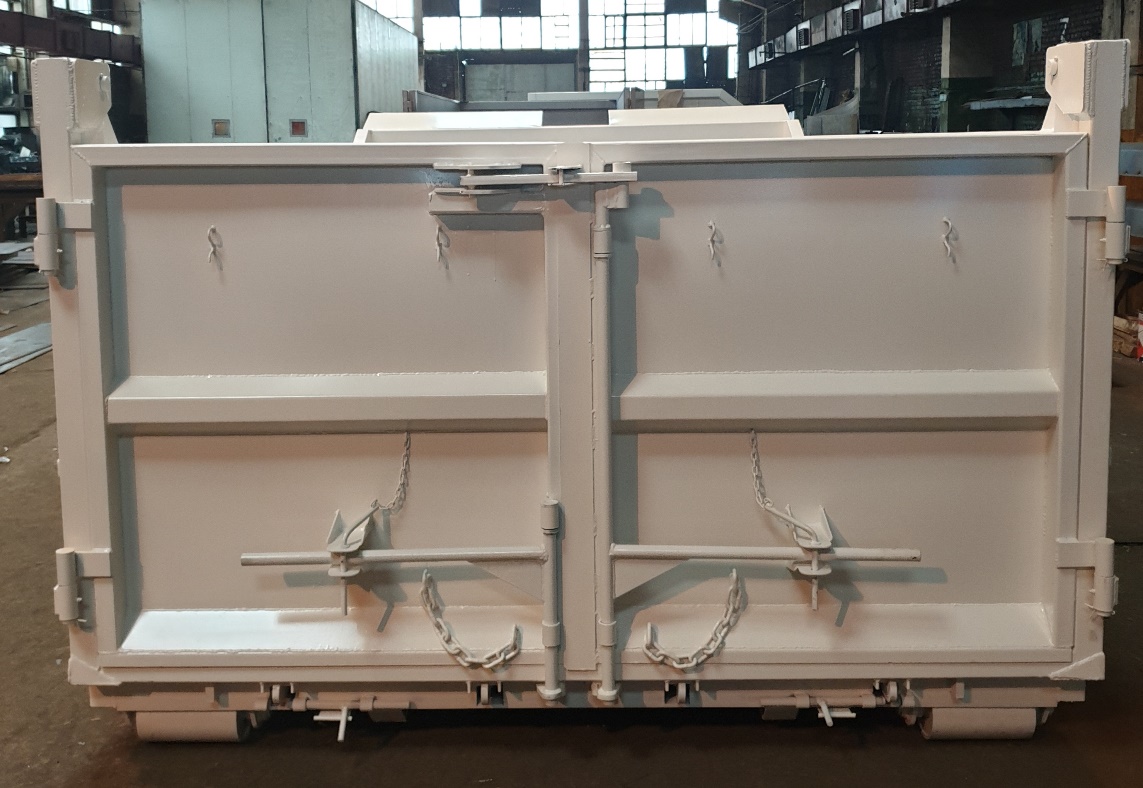

Standard equipment	2 left-right doors with locking and safety system, greased hinges; 2 rollers with bushings and greasing; front access ladder; tarpaulin hooks; 45° wall-to-floor joint
Corrosion protection	Inside: primer. Outside: primer + 2 coats of alkyd paint, RAL colour of your choice

Options

• Rack-and-pinion lid with multiplier
• Hydraulic lid
• 2 manual lids (with reducer or sliding)
• Simple or roll-up tarpaulin

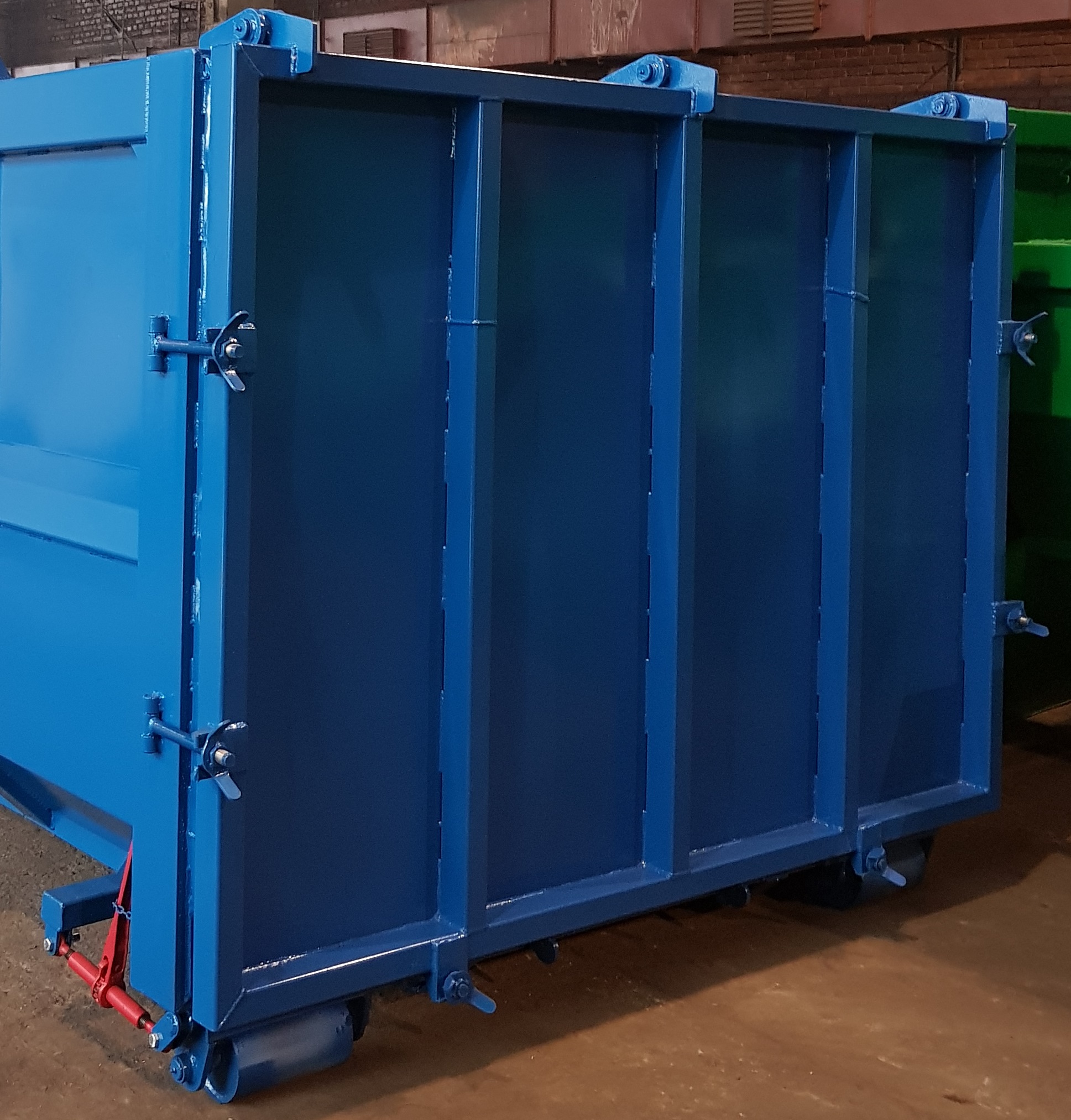

• Swing door with petroleum-resistant gasket
• Universal doors (left-right + swing)
• 90° wall-to-floor joint

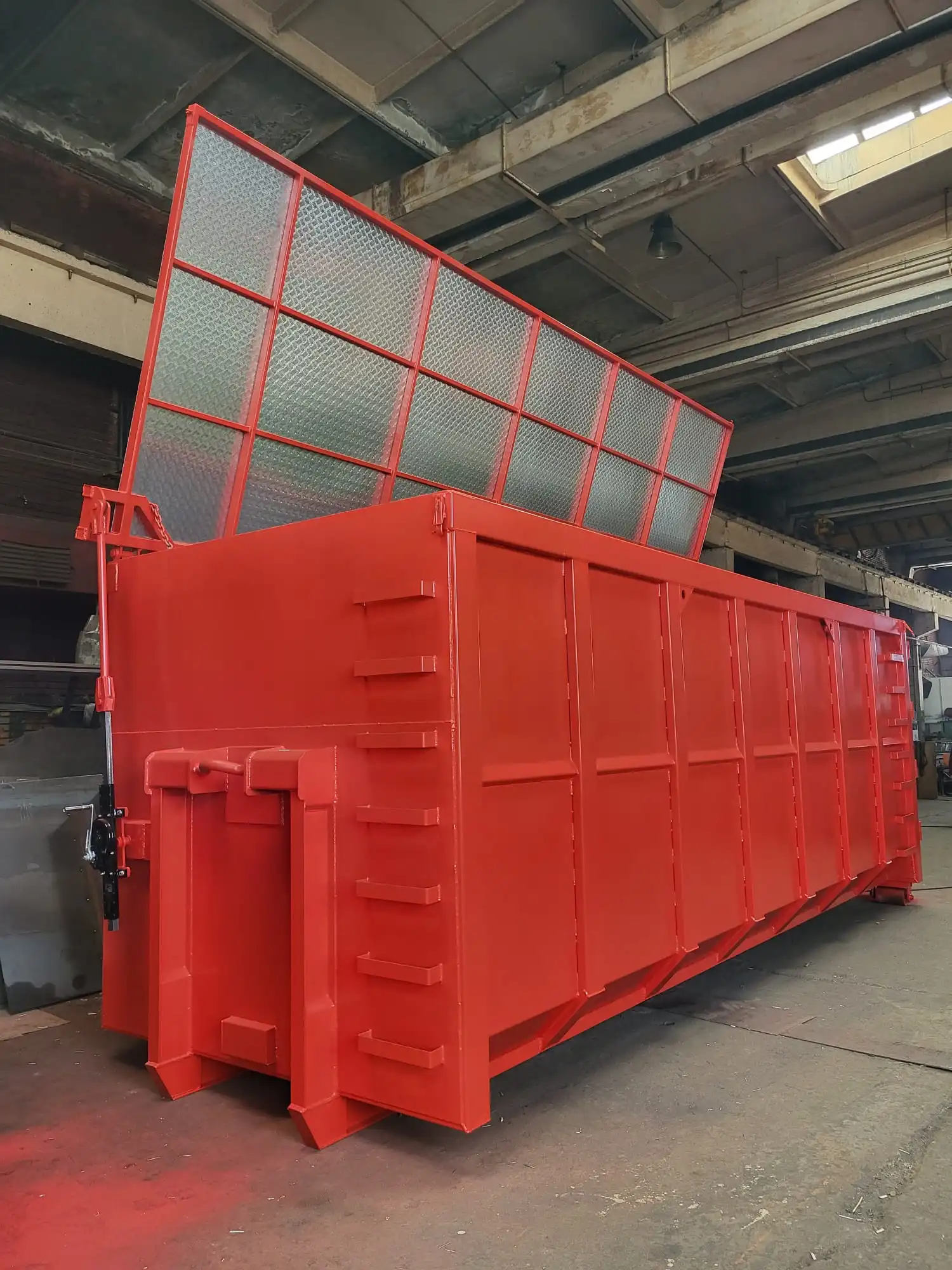

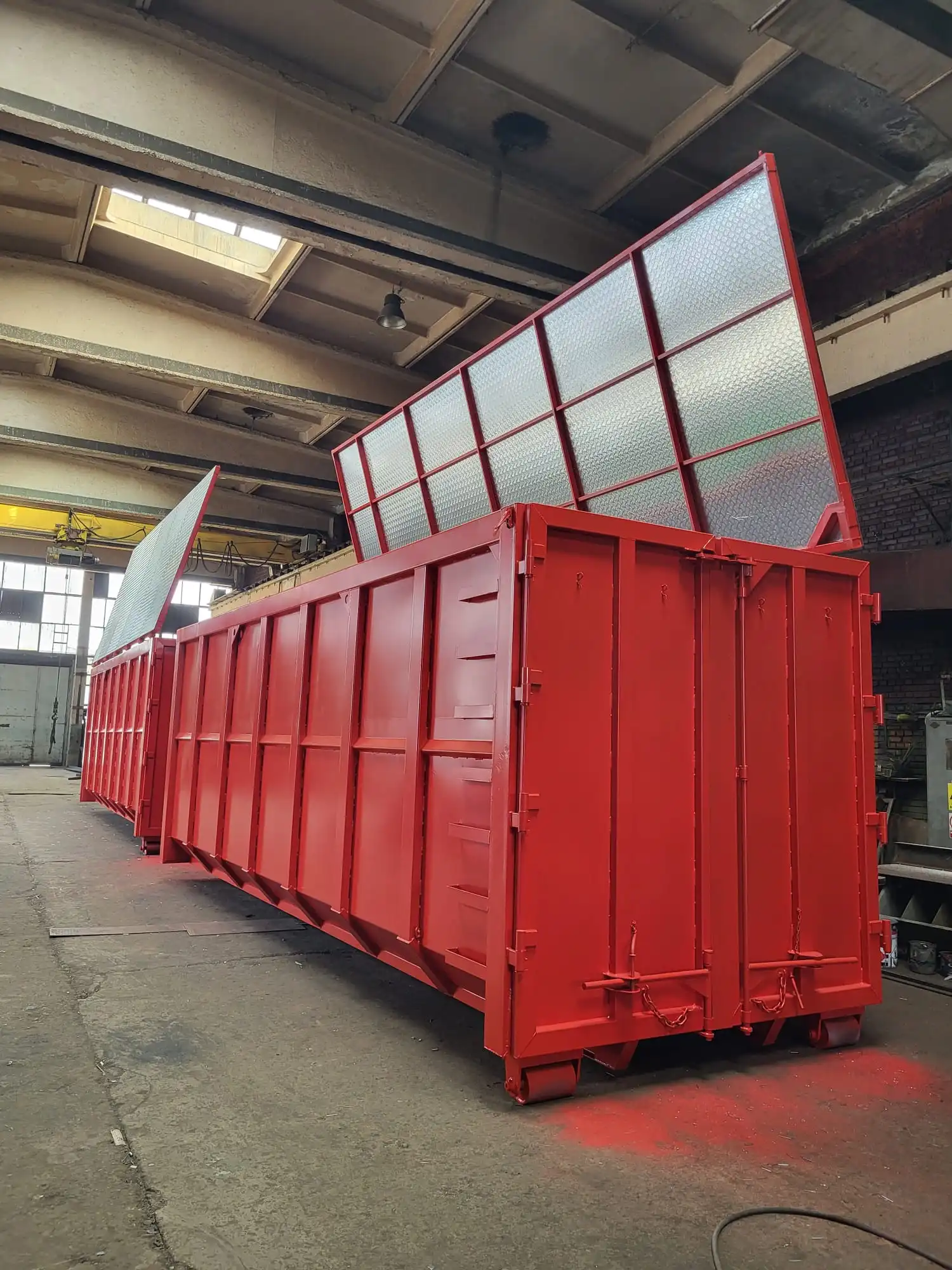

• Mesh walls

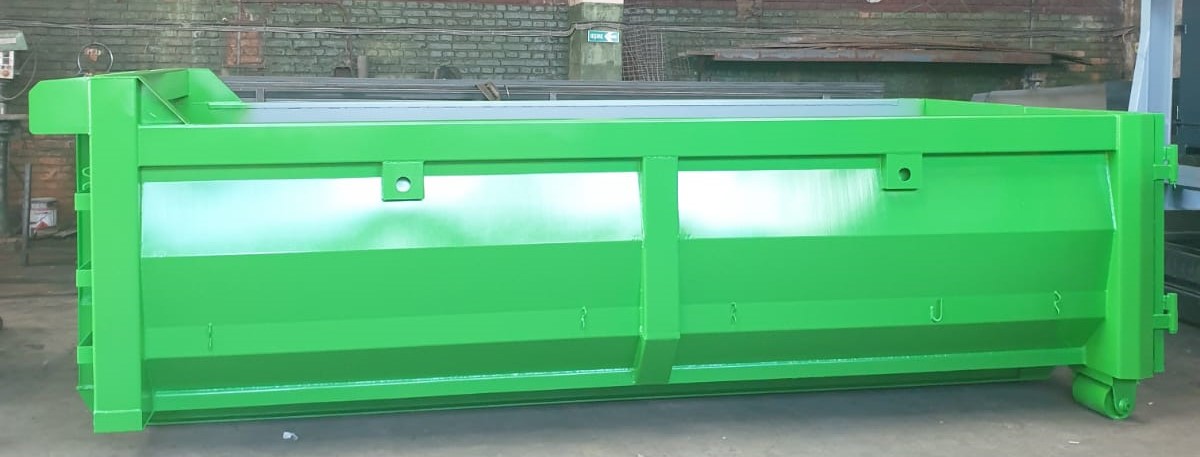

• Open top
• Fixed lid
• Compartments for recyclables

Final dimensions, thicknesses and equipment are agreed in the quote, to suit your needs.
