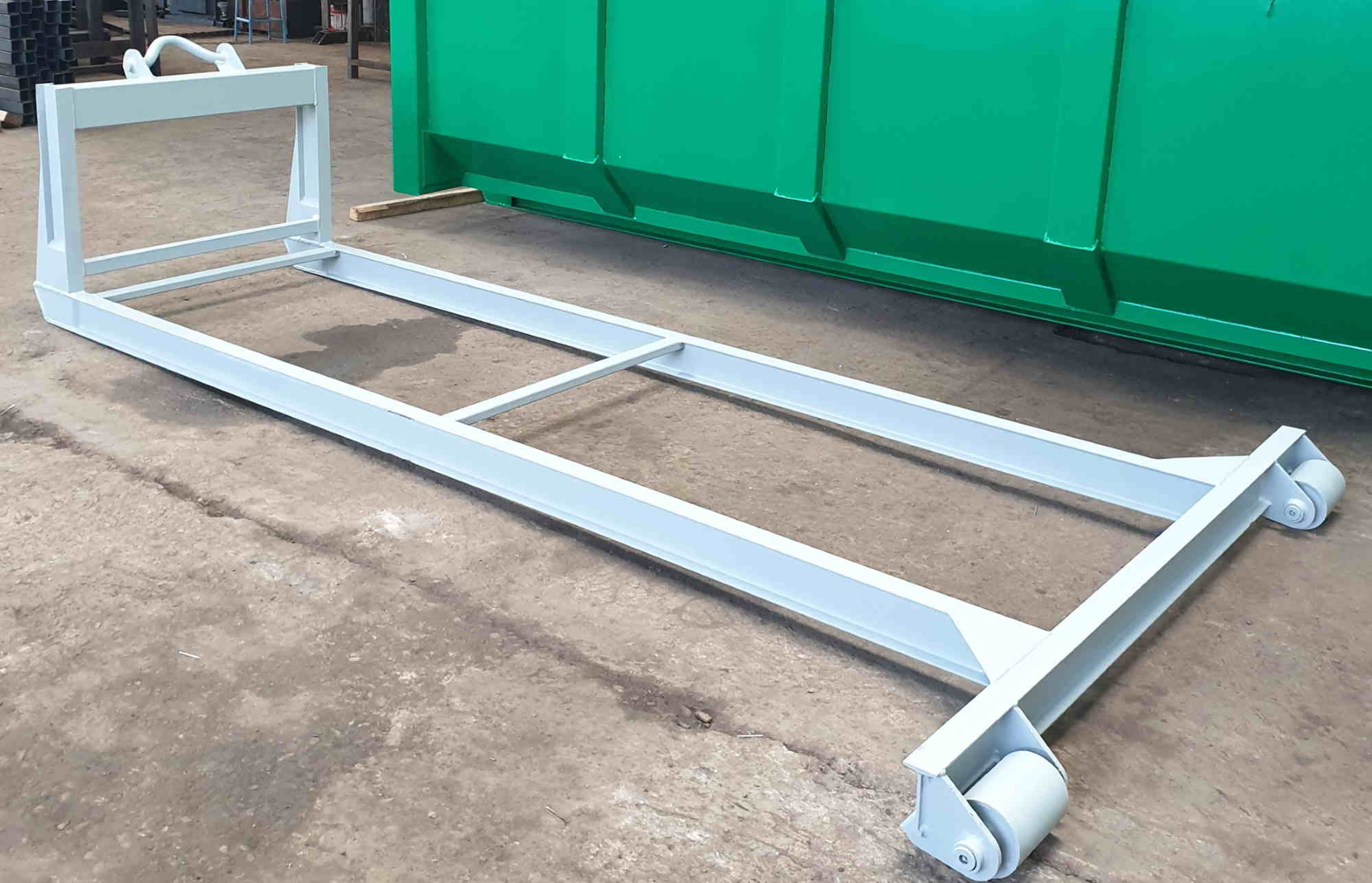

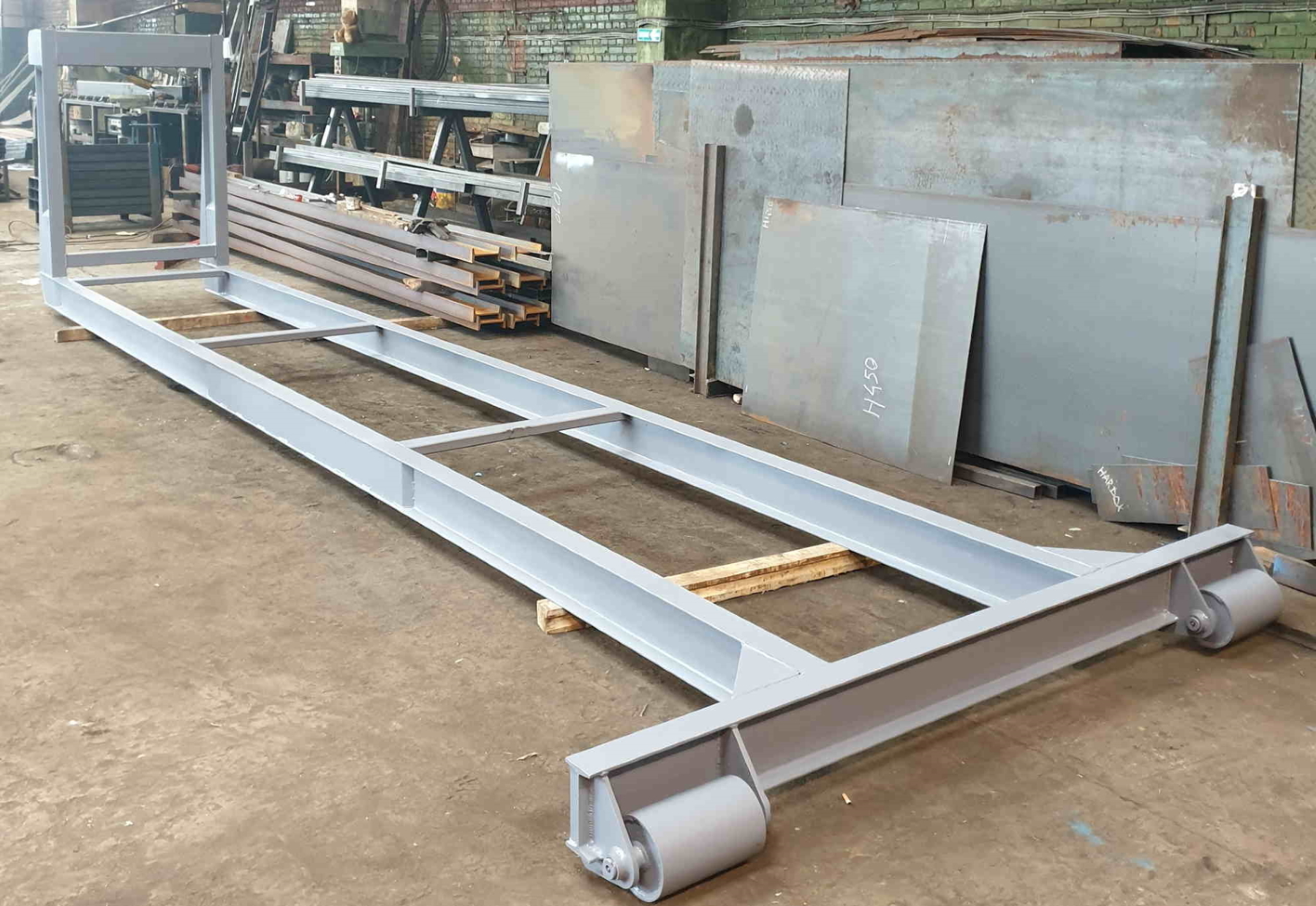

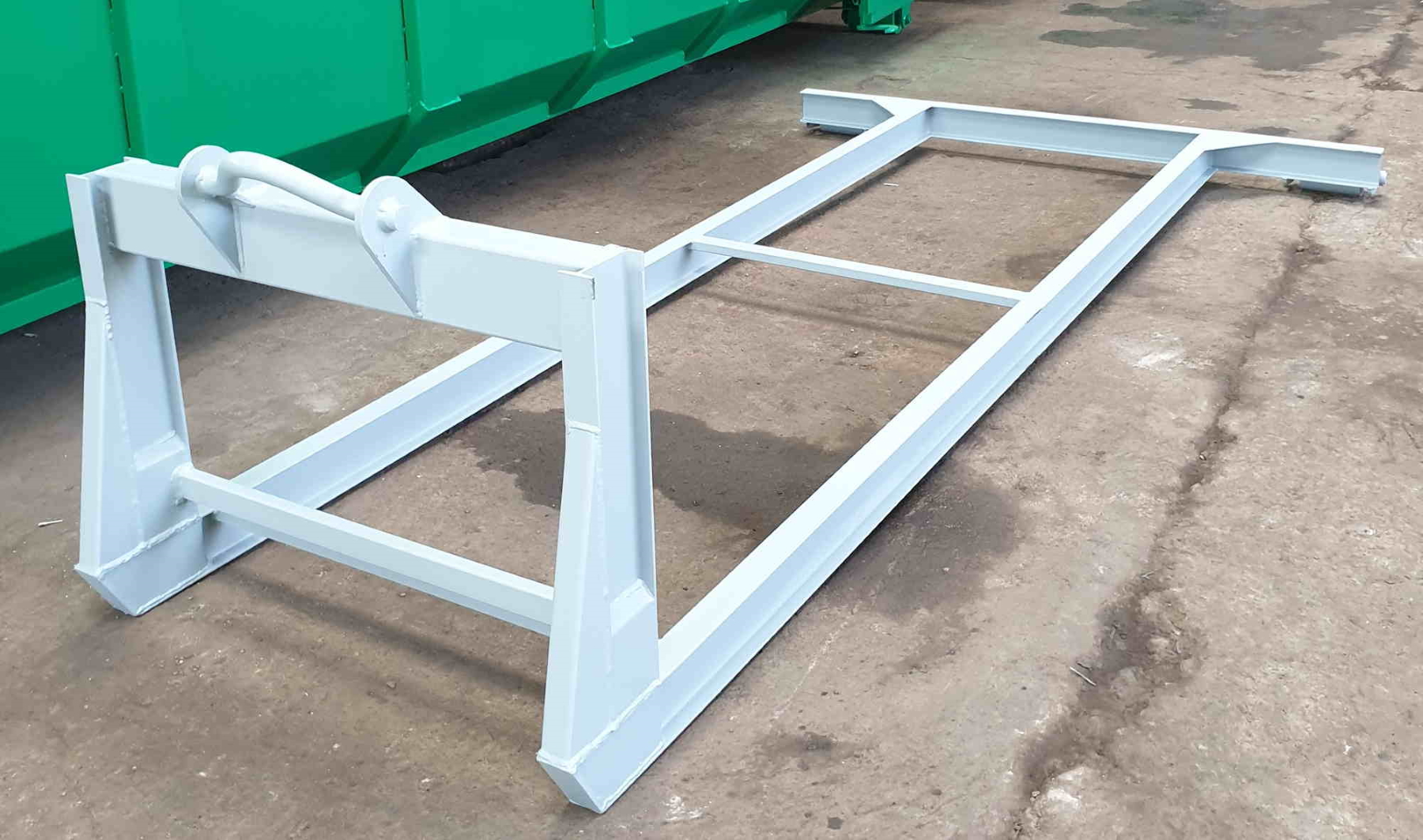

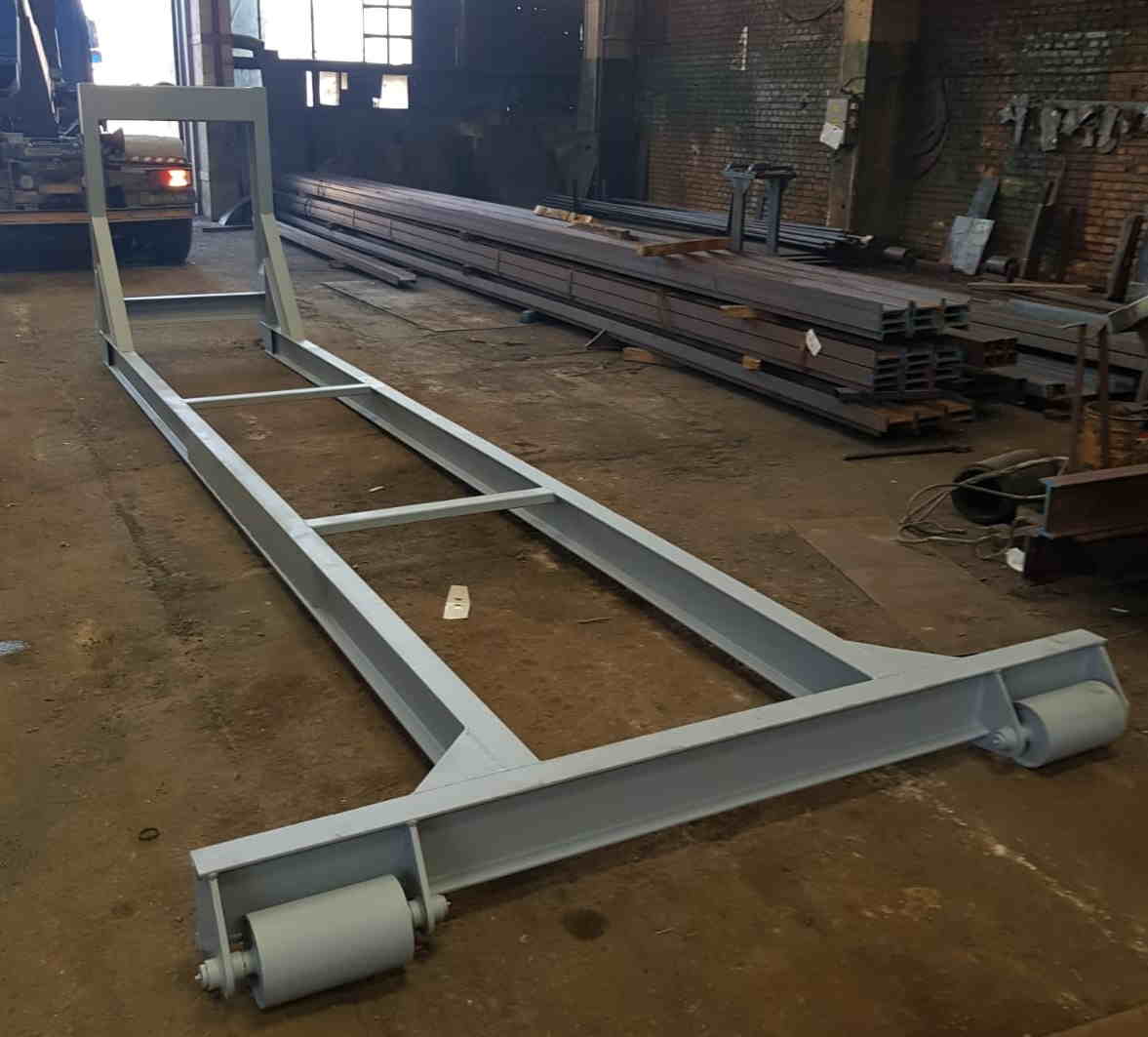

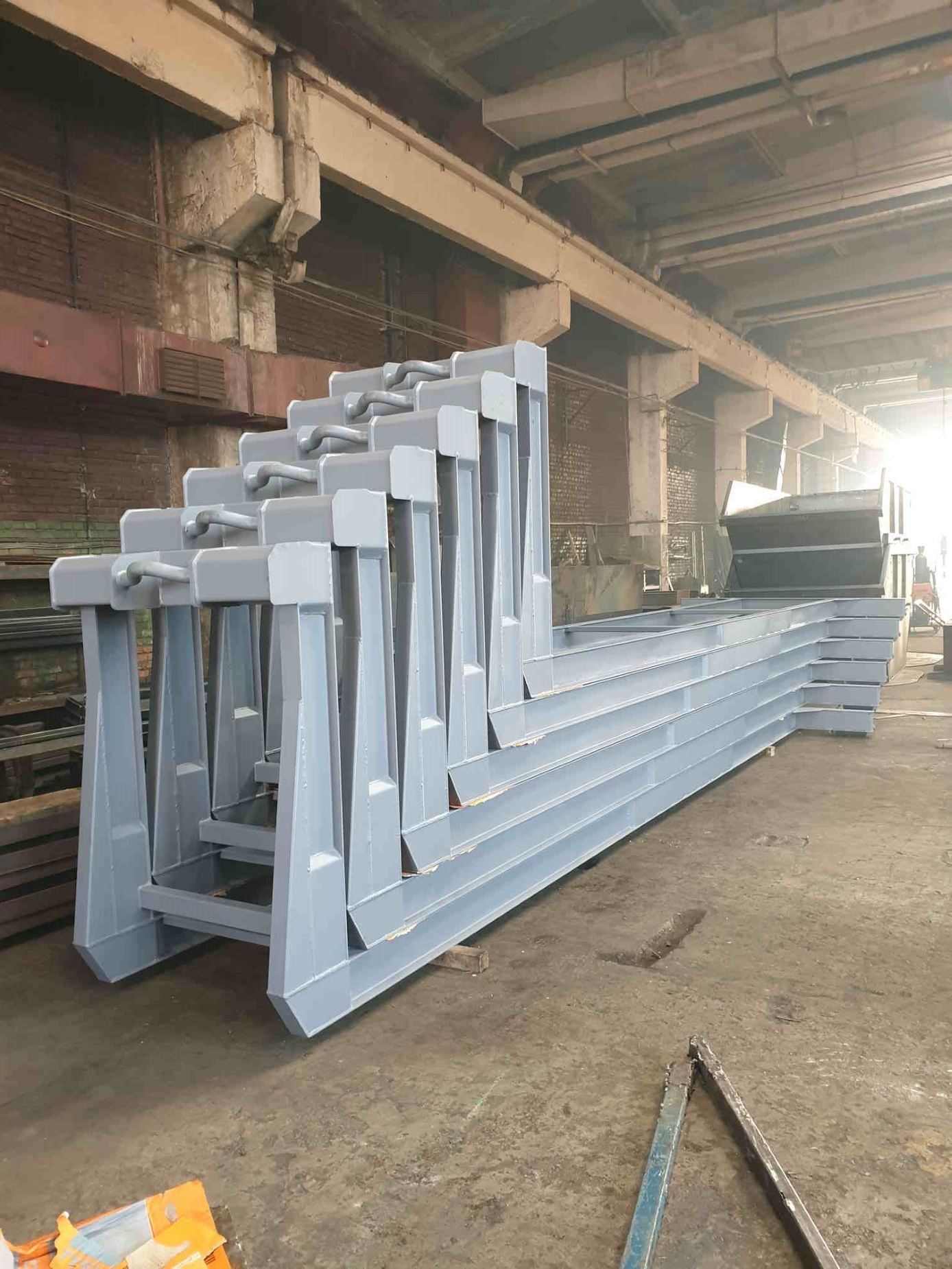

Abroll subframe
Abroll subframes for mounting Skip containers, tanks, salt spreaders, generators or pumps on hook-lift vehicles.
The Abroll subframe lets a hook-lift vehicle load and unload equipment that is not an Abroll container: Skip containers, tanks, salt spreaders, generators or pumps.
Technical data
| Lifting hook | Round steel Ø 50 mm, S355JR |
|---|---|
| Rollers | 2 rollers Ø159×250 mm, with bushings and greasing system |
| Runners | INP 180 mm profiles |
| Finish | Anti-corrosion primer coat |
| Use | Skip containers, tanks, salt spreaders, generators, pumps |
Final dimensions, thicknesses and equipment are agreed in the quote, to suit your needs.
Lucimet range
Other products

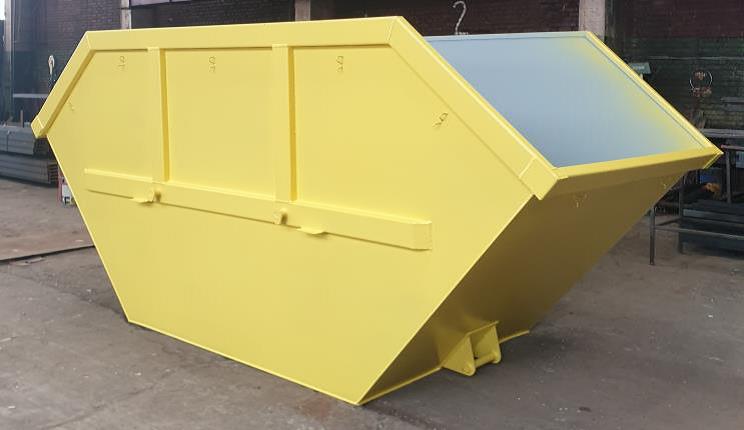

Skip containers
Metal Skip (Absetz) containers to DIN 30720: asymmetric, symmetric and symmetric with lids.
Technical details →

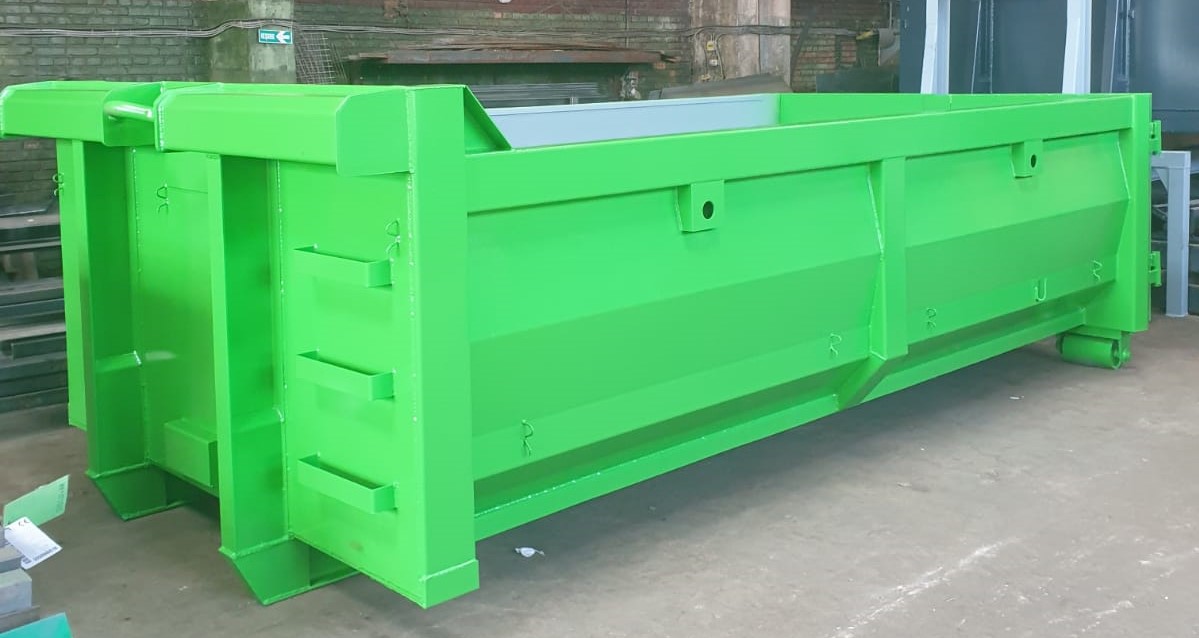

Metal Abroll containers
Abroll (roll-on/off) containers to DIN 30722-1, from 5 to 50 m³, with doors, lids and compartments on request.
Technical details →
HARDOX Abroll containers
Abroll containers in Hardox 450 wear-resistant steel, for scrap, rubble, sand and gravel.
Technical details →

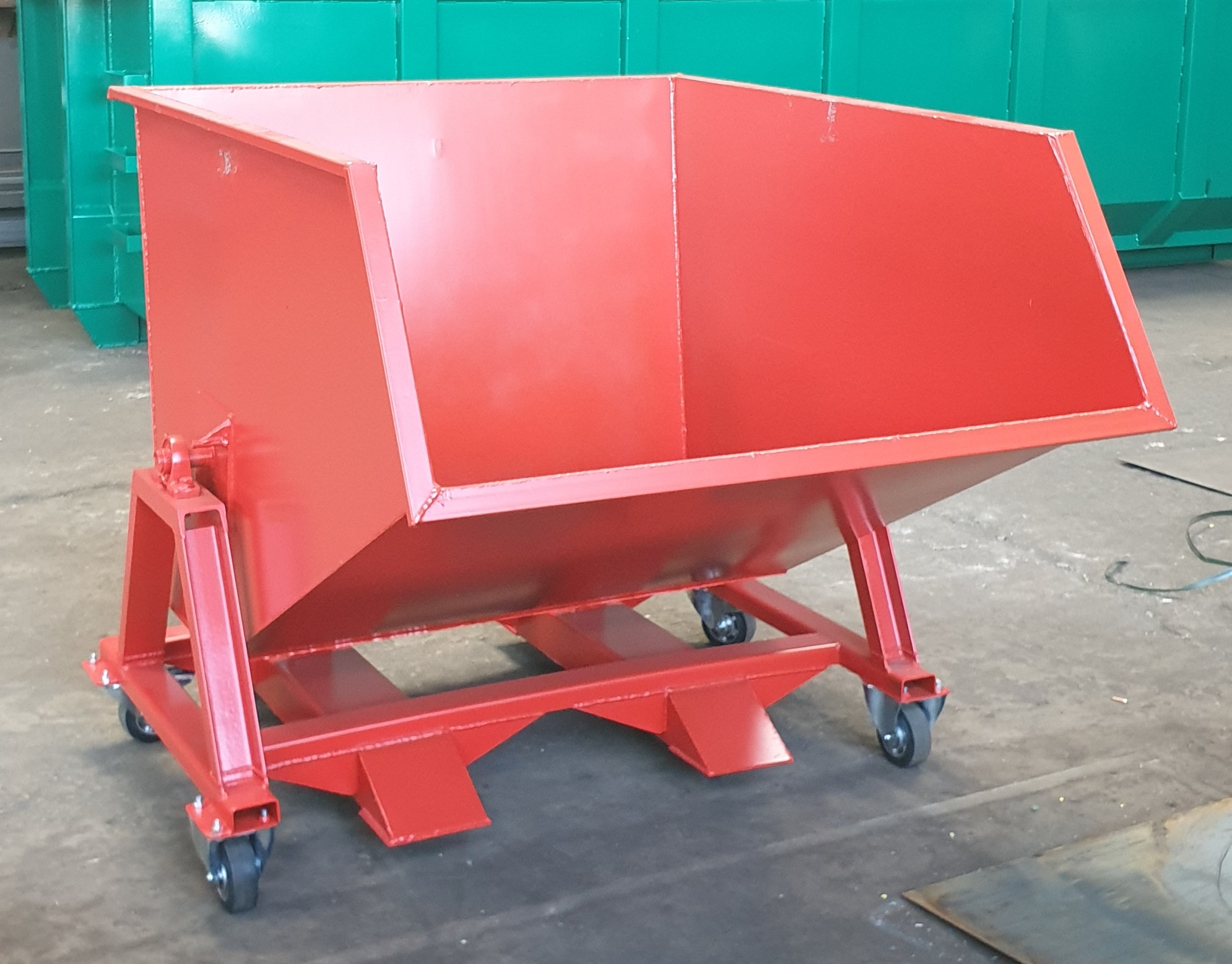

Tipping containers
